Anchors produces refractory anchors for fibers (for insulating blankets, insulating boards/pannels, modules fibers). The fiber linings are common when we need the lining with good thermal shock resistance and a fast installation.
Example : heat treatment furnaces.

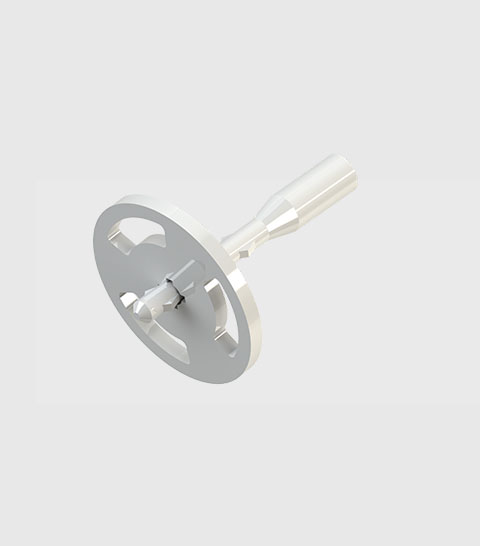

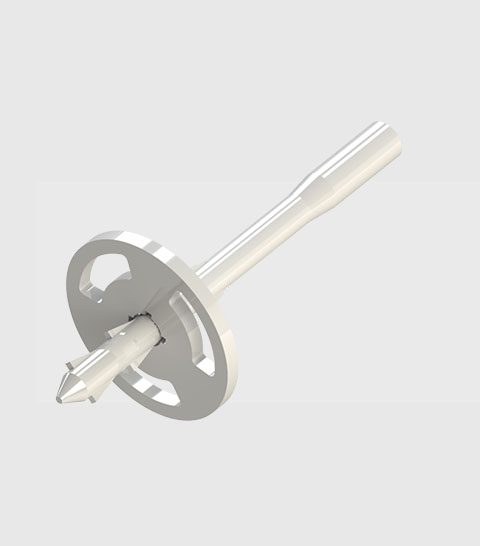

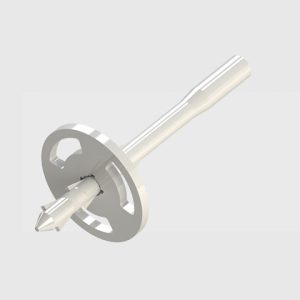

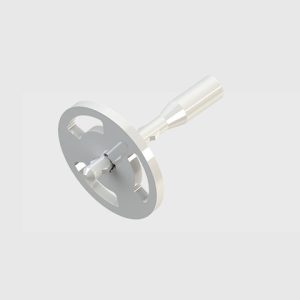

D1 : “Cerafix” type anchors

«CERAFIX» type anchors : Anchors for fibers with content 95 % Al2O3, the cerafix system is used with the presence of high corrosion with temperatures that can reach up to 1500°C). Exists in 2 lengths CERAFIX 1 : 70 mm or CERAFIX 9 : 120 mm. This system is used with a stud PRESSON M6 at the back. (DRS or DRH).

Download “Cerafix”

D1 : "Cerafix" type anchors

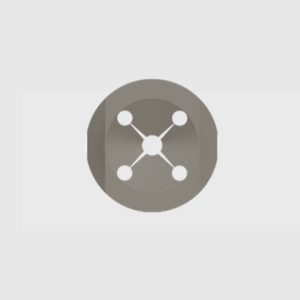

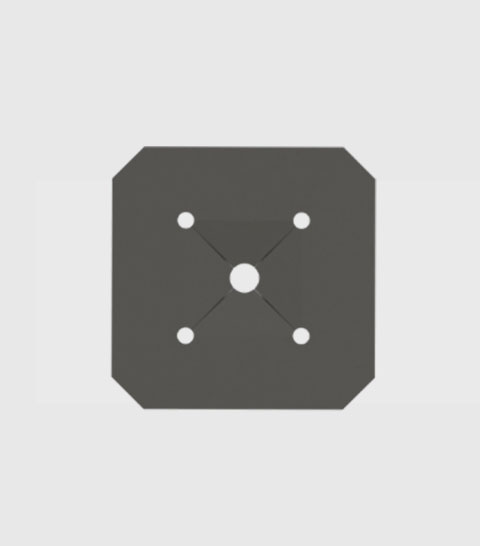

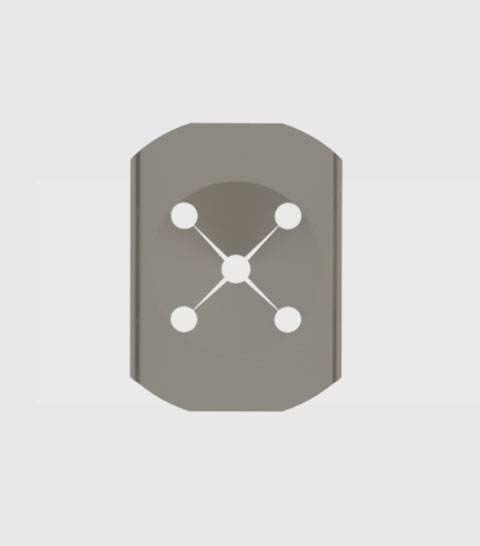

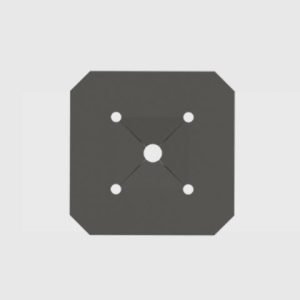

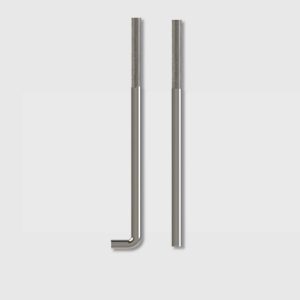

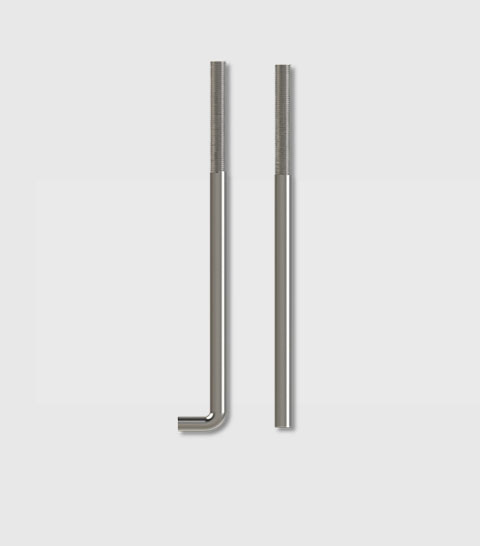

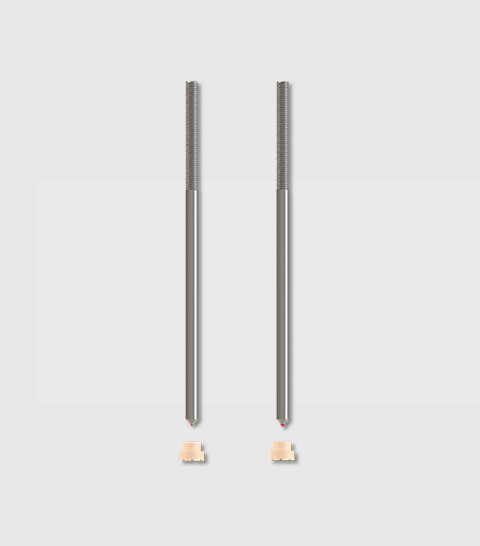

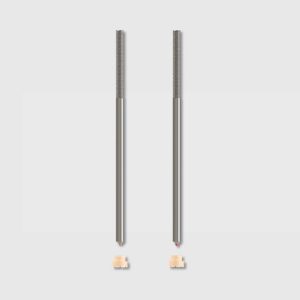

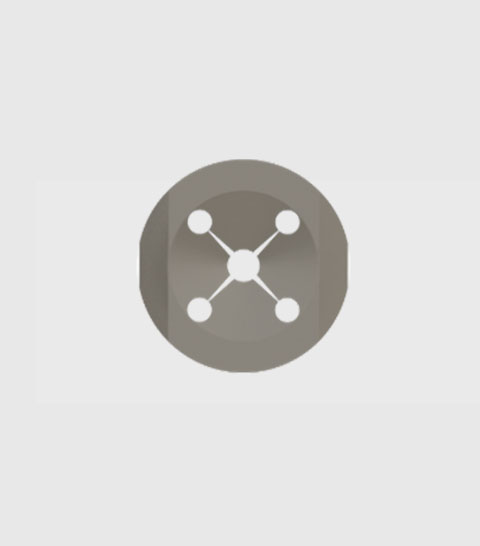

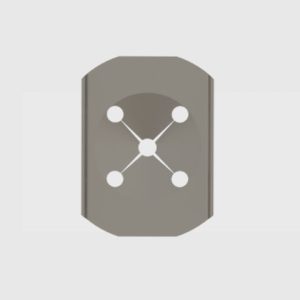

D2 : “Press on” type anchors

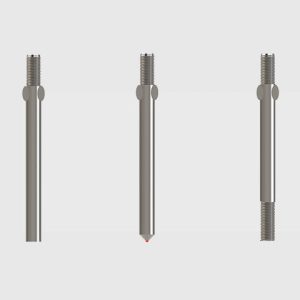

DRS.RT, DRS.CT, DRH, DRT, DRP, POC, LPC, MTC : anchors for fibers composed of : 1 stud in round material for gun welding or hand welding with a thread and a fixing clip placed on the thread on the hot face.

Download “Press on”
D2 : "Press on" type anchors

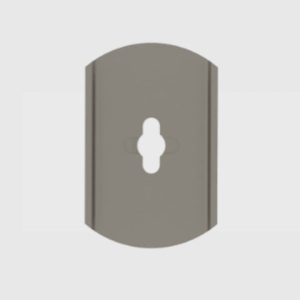

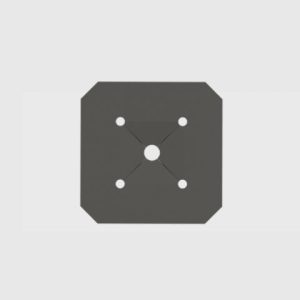

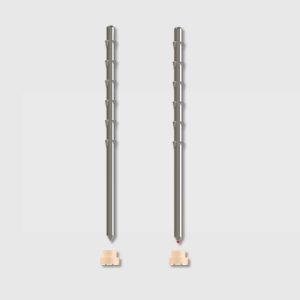

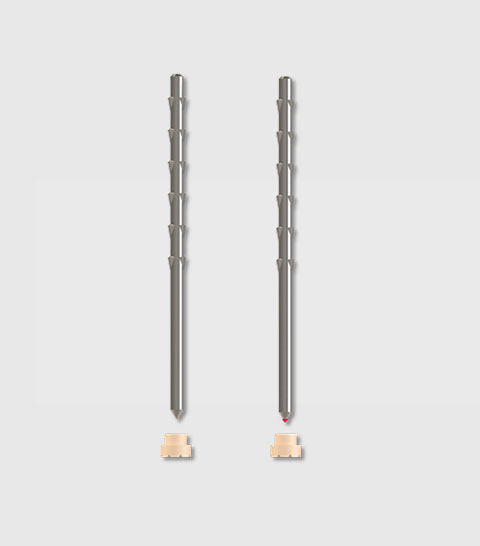

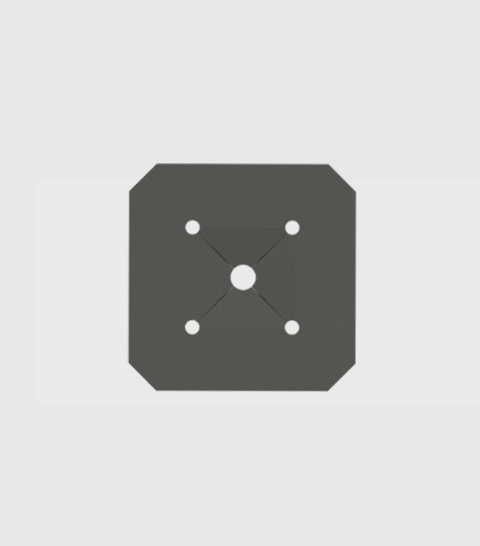

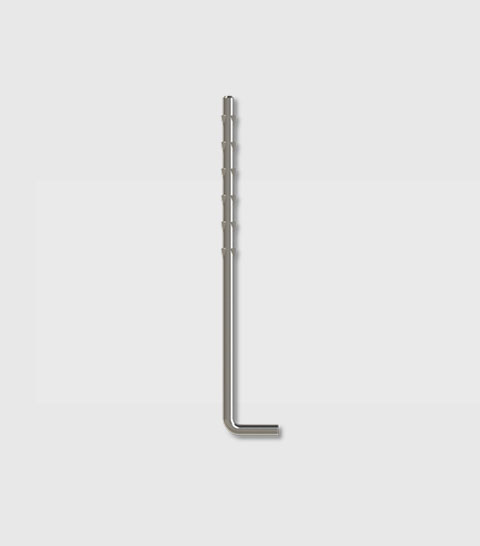

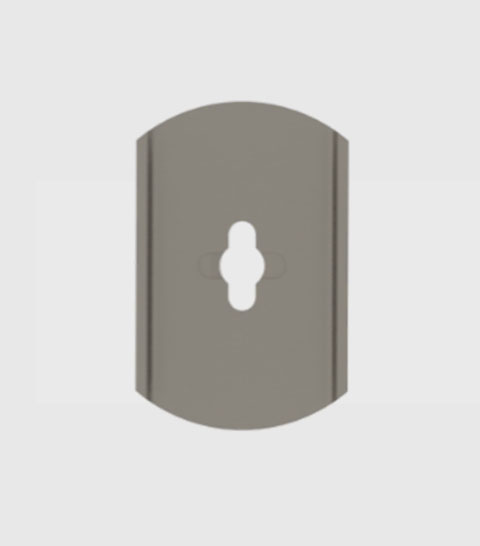

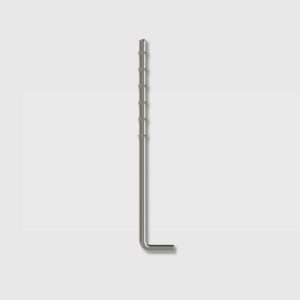

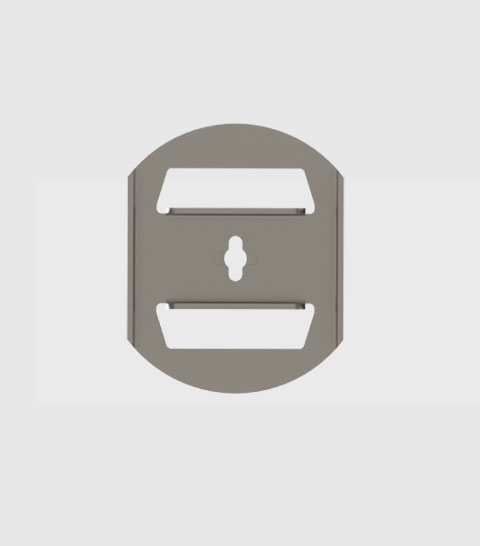

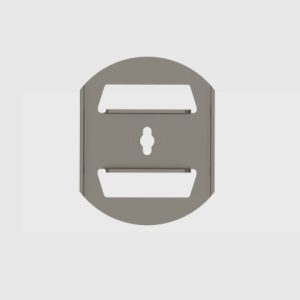

D3 : “Fiberfix” type anchors

FFS, FFH, FFT, LFF040, LFF060, MTC : anchors for fibers composed of : 1 stud in round material for gun welding or hand welding and fixing clip quarter-turn on the hot face.

Download “Fiber”

D3 : "Fiberfix" type anchors

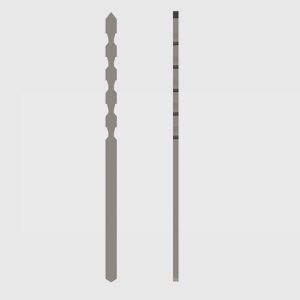

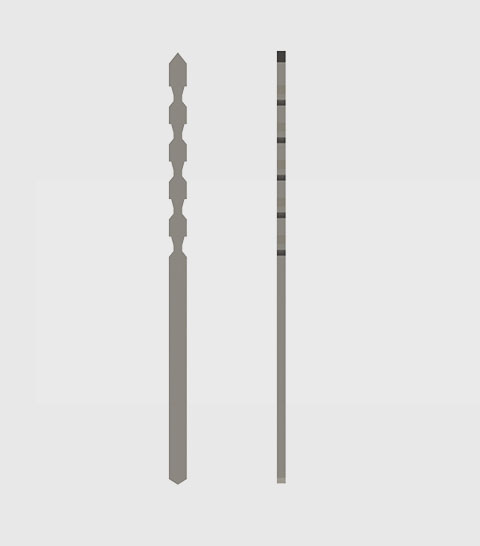

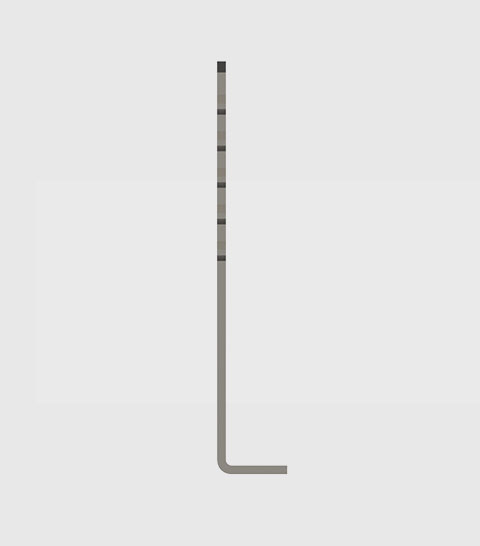

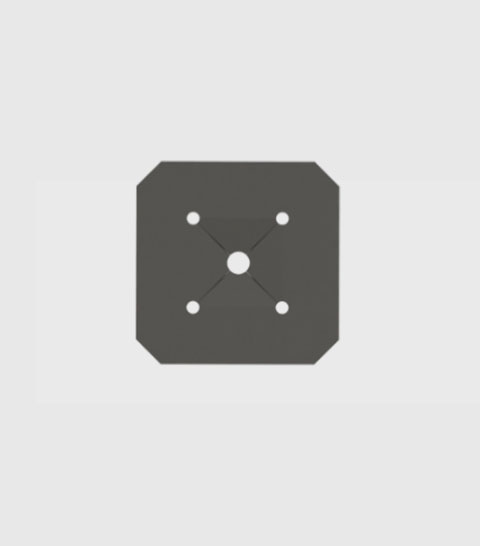

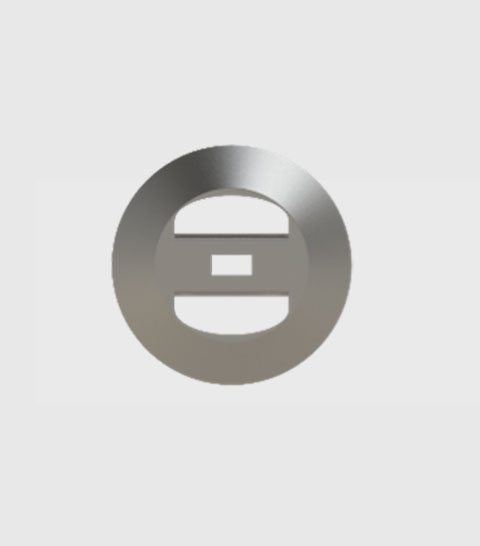

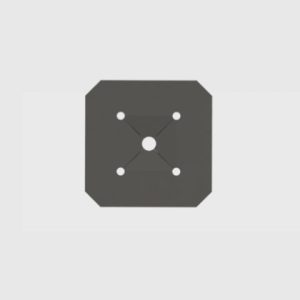

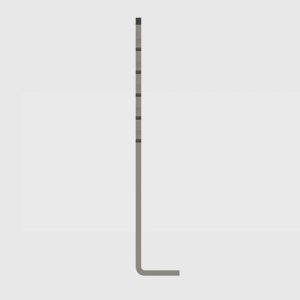

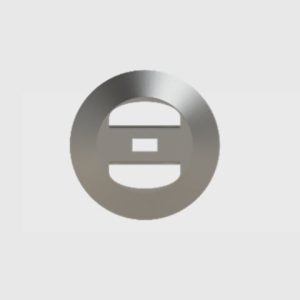

D4 : “Insultwist” type anchors

INS-INH-LWI : anchors for fibers composed of : 1 stud in flat material for gun welding or hand welding and fixing clip quarter-turn on the hot face.

Cuplocks suitable for this system on request.

Download “Insultwist”

D4 : "Insultwist" type anchors

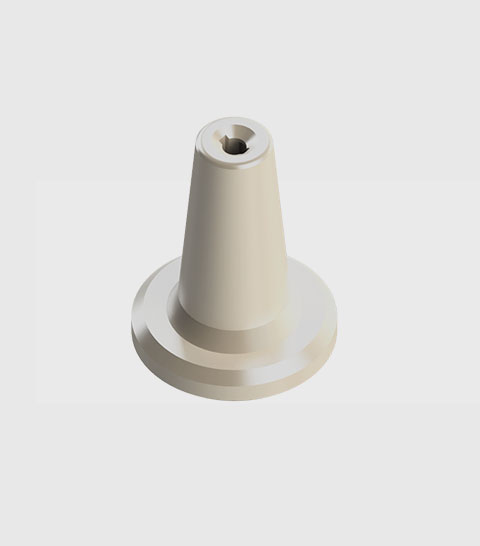

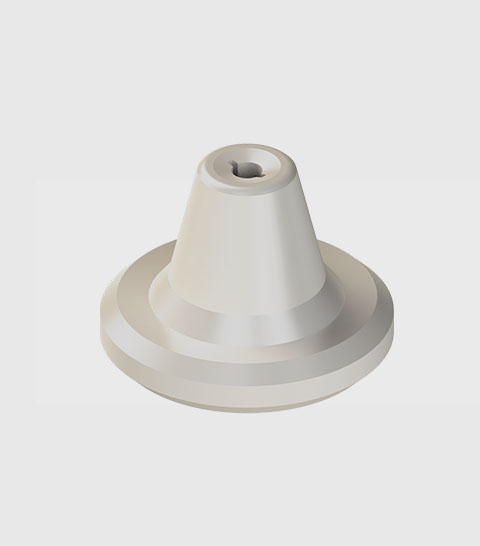

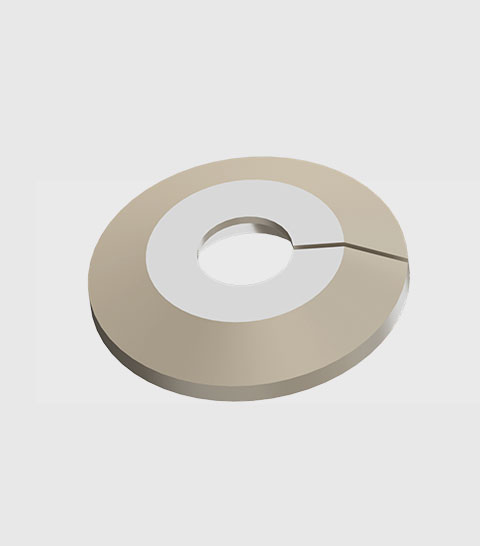

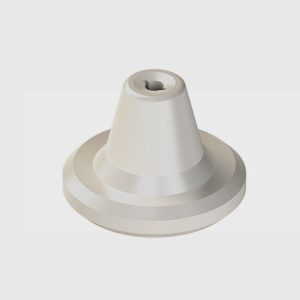

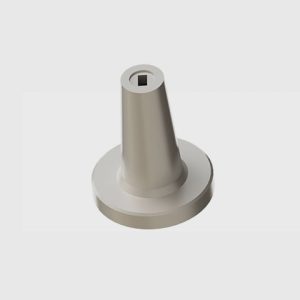

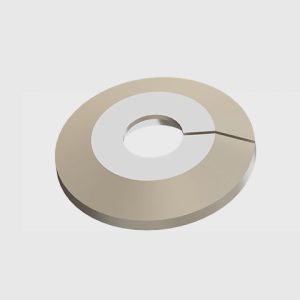

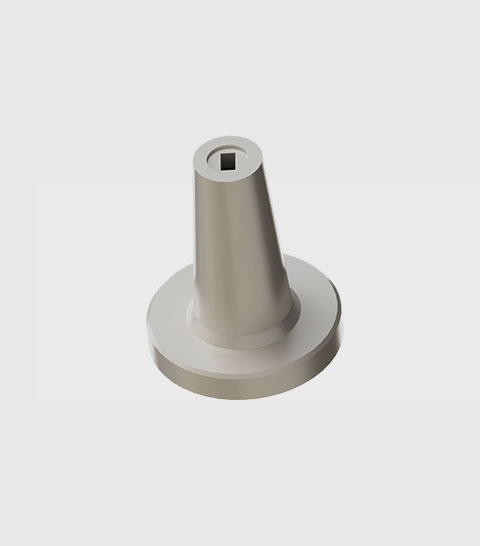

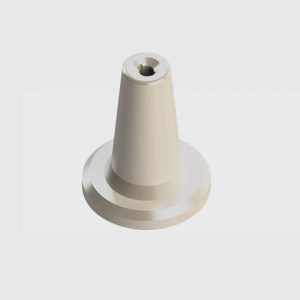

D5 : “Cuplocks” type anchors

CUP-050, CUP-025, WAS CUP : ceramic cuplocks for insulating fiber linings. Used in case of the presence of gas in the furnace which is too corrosive and that the clip can’t support it. System used with a fiberfix stud at the back (FFS or FFH).

Download “Cuplocks”

D5 : "Cuplocks" type anchors

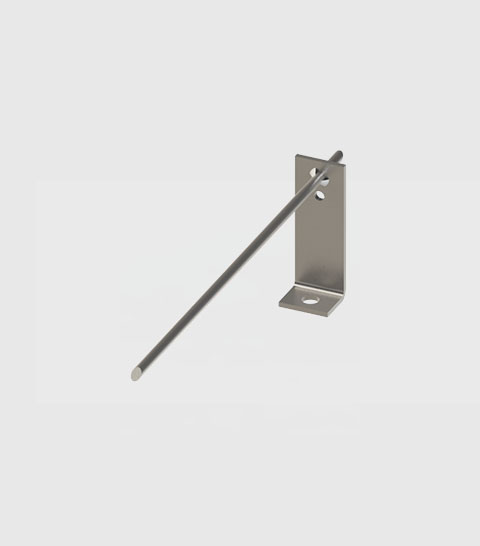

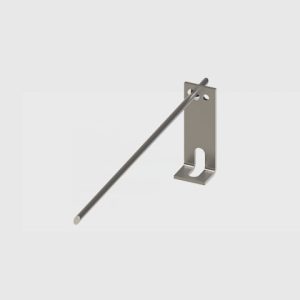

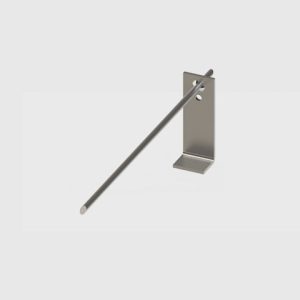

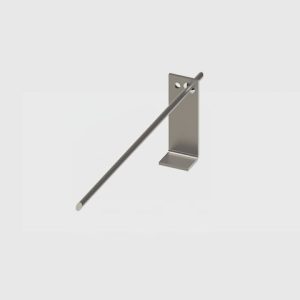

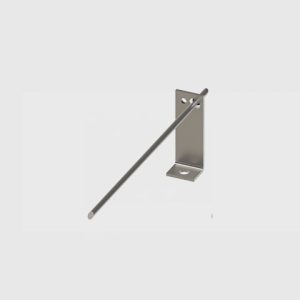

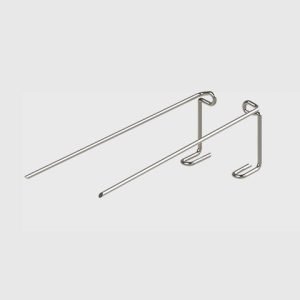

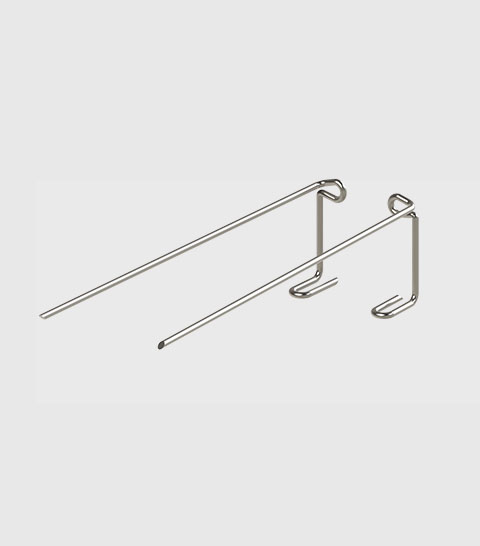

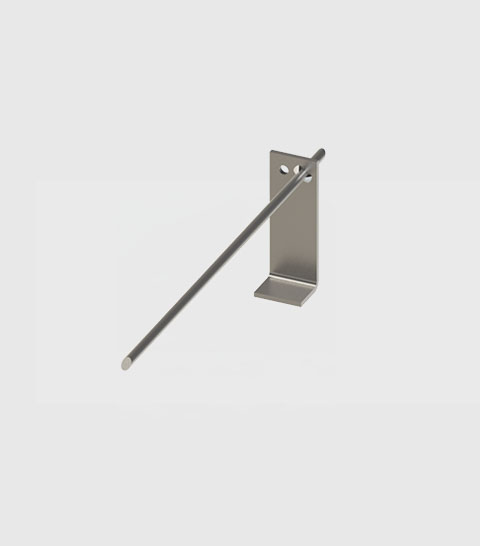

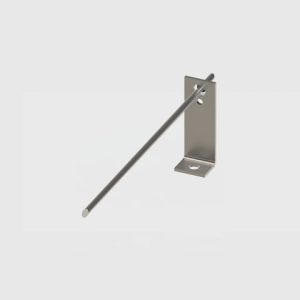

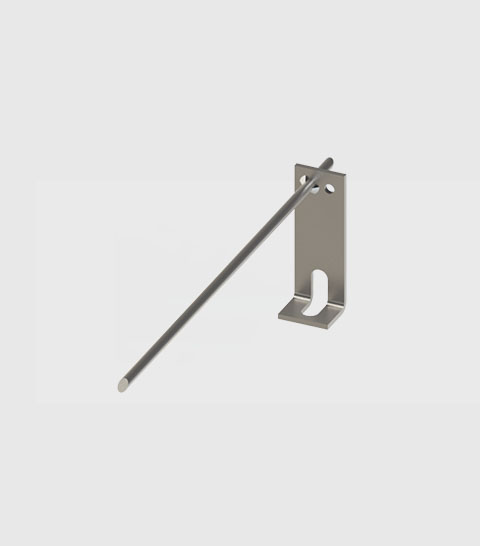

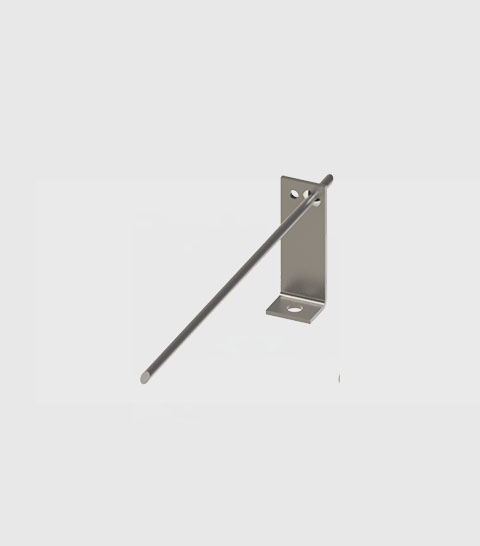

D6 : “Stack bond” type anchors

modul anchors for a quick placement.

Download “Stack bond”

D6 : "Stack bond" type anchors

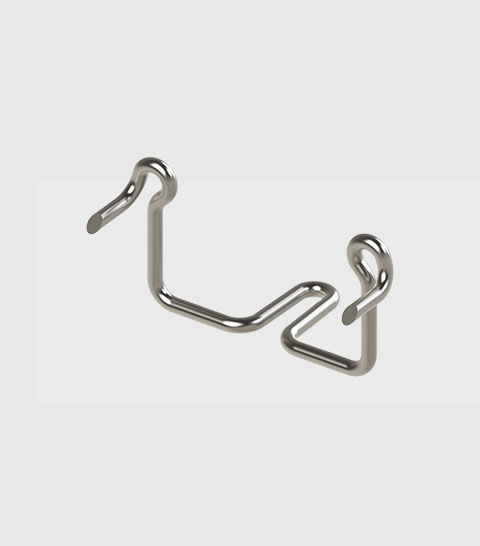

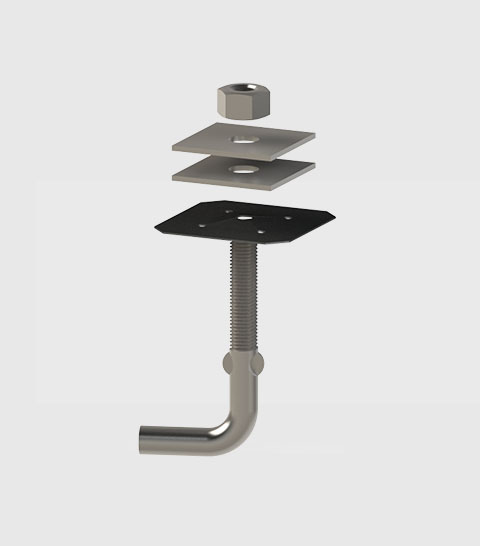

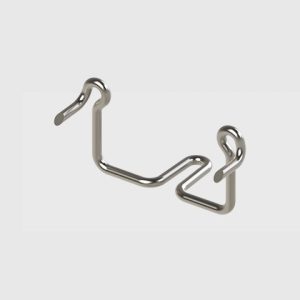

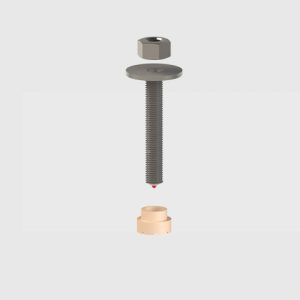

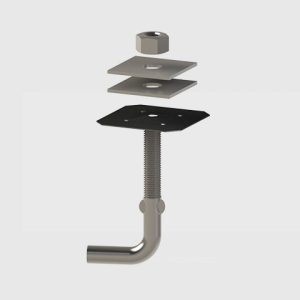

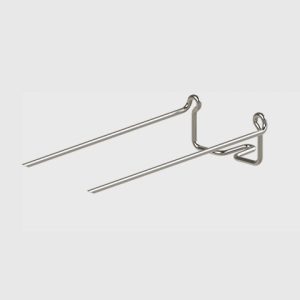

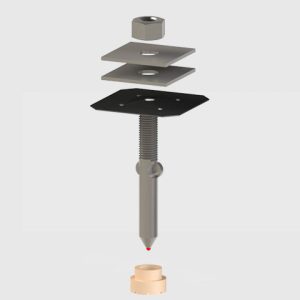

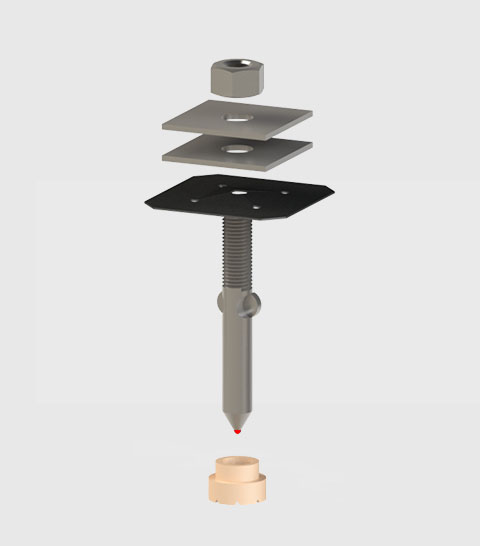

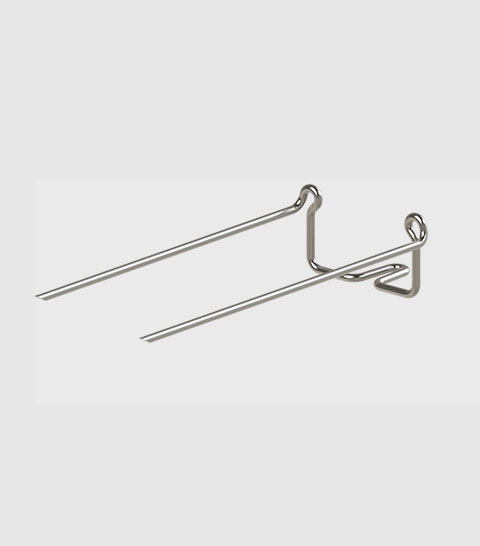

D7 : “IBA” type anchors

The best of modul anchors, 3 anchoring points.

Download “IBA”

D7 : "IBA" type anchors

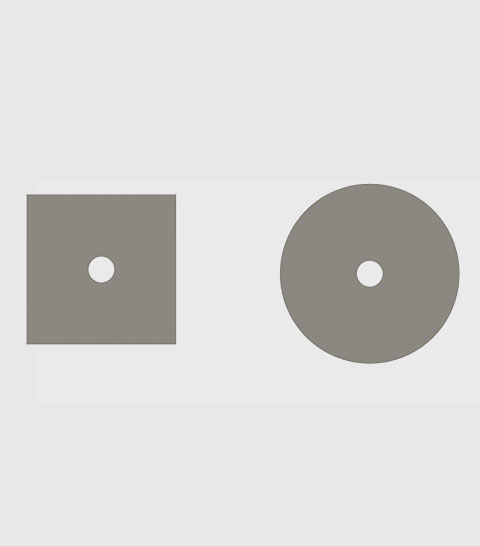

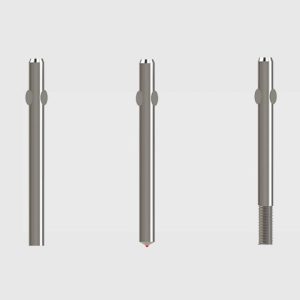

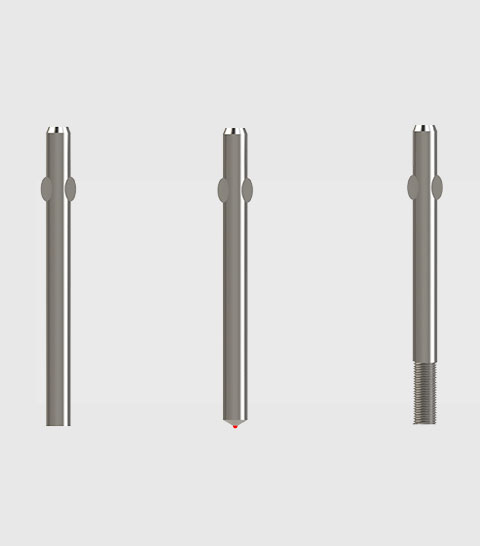

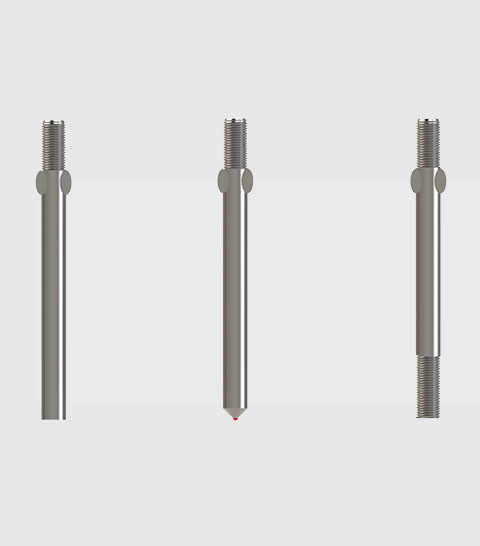

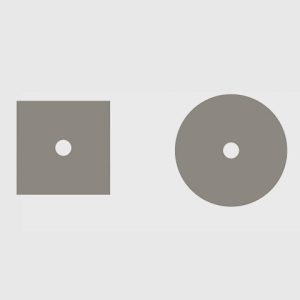

D8 : “P-pin” type anchors

IPH, IPS, IPT, TPS, TPH, TPT, RIN/SRN : anchors for a hard backup insulating.

Download P-in

D8 : "P-pin" type anchors

Other models on request, according to your drawings. Contact us about Anchors for fibers
